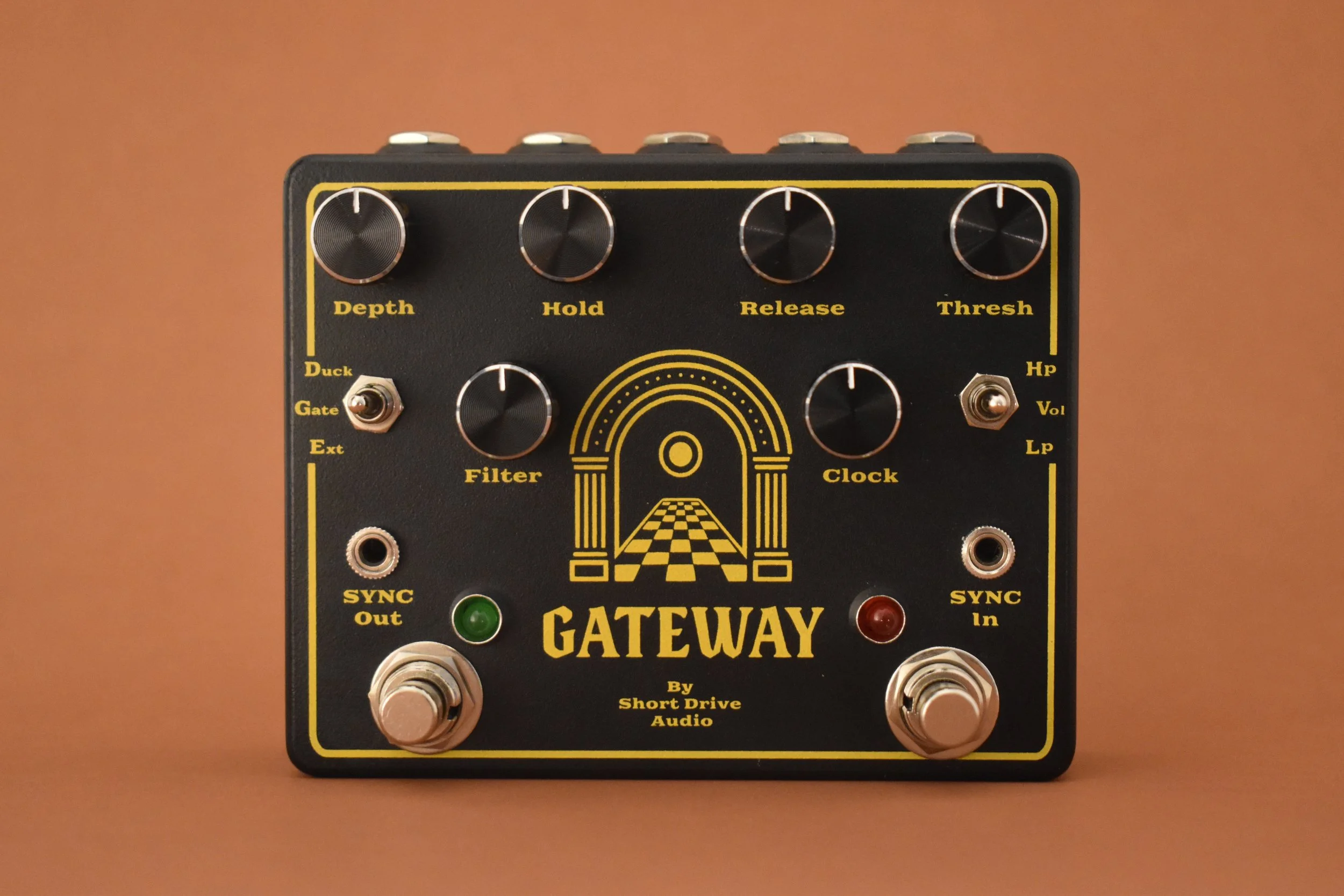

Gateway sidechain guitar pedal by Short Drive Audio

Gateway

Ducking, Gating and Sidechaining external effects.

Plug in a trigger. Dial in the feel.

24-bit / 48 kHz · 9V DC · Designed and built in Sydney, Australia

DuckingGatingExternal FX FiltersTap TempoTrigger & Sync

Gateway
  • Gateway
  • Gateway
  • Gateway
Gateway

Gateway
$399.00 AUD
$399.00 AUD
Out of stock

Gateway is a sidechain processor pedal that ducks, gates, and drives your other pedals in real time. Plug in a trigger, dial in the feel, and Gateway becomes a simple way to shape sound with rhythm.
Notify me when the next batch is available

One email when stock lands. Nothing else.

Features

Ducking

Pull your signal down in time with the trigger, shaping how deep it ducks and how it swells back. The classic sidechain pumping sound.

Gating

Activates a noise gate in time with the trigger, creating a rhythmic pulsing effect, from a soft tremolo, to a hard, percussive stutter.

External FX

Route external pedals through the FX loop and drive them with the trigger, turning anything on your board into a rhythmically sidechained effect.

Filters

Aim the effect at part of the spectrum, using low-pass to move the highs, or high-pass to move the lows, with the cutoff set by the Filter knob.

Tap Tempo

Tempo is read straight from the trigger, so it stays locked to whatever drives it. The clock knob divides it from 1/1 to 1/16.

Trigger & Sync

Activate the trigger using an audio source, the footswitch, or 3.5 mm SYNC IN. SYNC OUT passes the clock on to keep the rest of your rig in time.

Specs

Audio I/O (mono)

  • 1 × 1/4" Main Input
  • 1 × 1/4" Main Output
  • 1 × 1/4" Trigger Input
  • 1 × 1/4" External FX Send
  • 1 × 1/4" External FX Return

Sync I/O

  • 1 × 3.5 mm Sync Input
  • 1 × 3.5 mm Sync Output

System

  • Audio: 24-bit / 48 kHz
  • Bypass: DSP bypass
  • Power: Standard 9V DC, center negative
